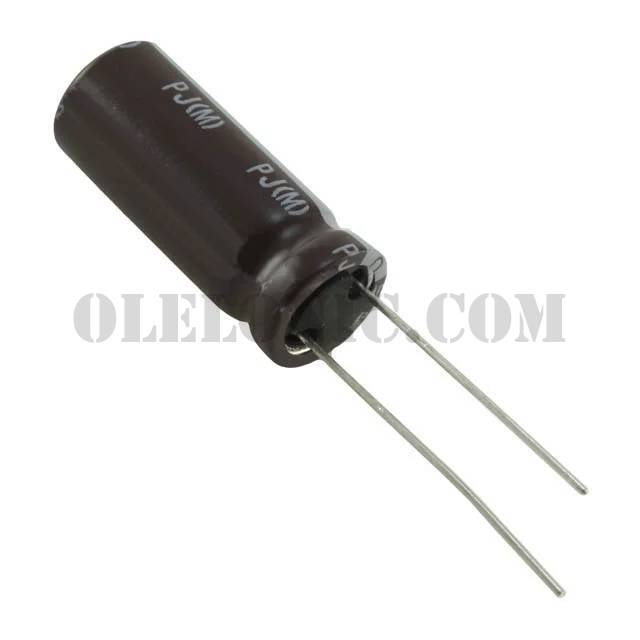

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	200
Manufacturer	Nichicon
Series	UPJ
Packaging	Bulk
Part Status	Active
Capacitance	6.8µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	45mA @ 120Hz
Impedance	2.5 Ohms
Lead Spacing	0.079" (2.00mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPJ1V560MED1TD	Nichicon, 56µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1E122MHD6TN	Nichicon, 1200µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1J150MED1TD	Nichicon, 15µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ0J562MHD6TN	Nichicon, 5600µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2G4R7MHD1TO	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1J102MHD	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ0J182MHD6TN	Nichicon, 1800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1K390MPD6TD	Nichicon, 39µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2AR68MDD1TD	Nichicon, 0.68µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ2A680MPD1TD	Nichicon, 68µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A470MPD1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A6R8MED1TD	Nichicon, 6.8µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View

UPJ1H6R8MDD

Part NumberUPJ1H6R8MDD
