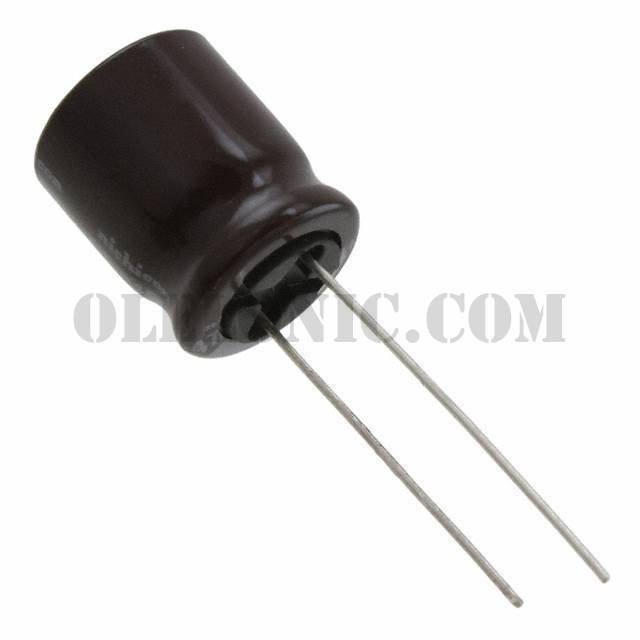

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UPJ Series
Standard Package	500
Manufacturer	Nichicon
Series	UPJ
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	915mA @ 120Hz
Ripple Current @ High Frequency	1.02A @ 10kHz
Impedance	100 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UPJ2G4R7MHD1TO	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2E330MHD1TN	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1A122MPD1TD	Nichicon, 1200µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2F3R3MPD1TD	Nichicon, 3.3µF 315V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1E222MHD6TN	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A010MDD1TD	Nichicon, 1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UPJ	View
UPJ1H821MHD6TN	Nichicon, 820µF 50V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ2A560MPD	Nichicon, 56µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1J820MPD1TD	Nichicon, 82µF 63V Aluminum Electrolytic Capacitors Radial, Can 3000 Hrs @ 105°C, UPJ	View
UPJ1A272MHD6TN	Nichicon, 2700µF 10V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1C152MHD1TO	Nichicon, 1500µF 16V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View
UPJ1K560MPD6TD	Nichicon, 56µF 80V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UPJ	View

UPJ0J152MHD6TO

Part NumberUPJ0J152MHD6TO
