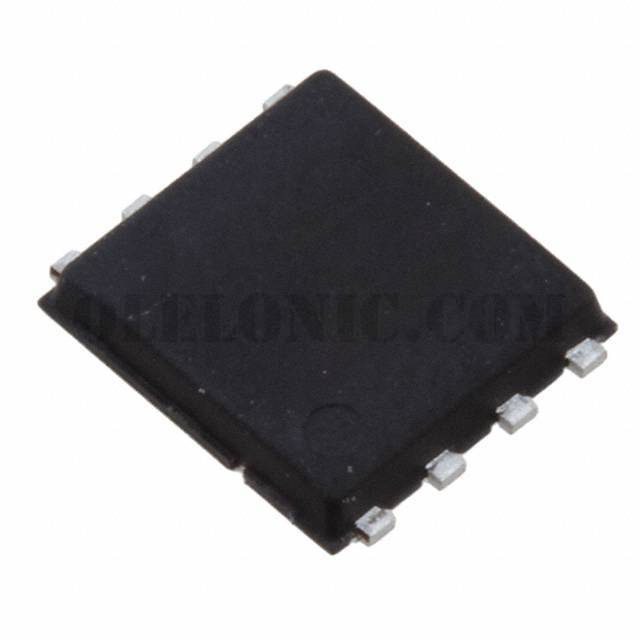

UPA2766T1A-E2-AY

Part NumberUPA2766T1A-E2-AY

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 30V 130A 8HVSON

DatasheetUPA2766T1A

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 130A (Tc) 1.5W (Ta), 83W (Tc) Surface Mount 8-HVSON (5.4x5.15)

To learn about the specification of UPA2766T1A-E2-AY, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UPA2766T1A-E2-AY with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UPA2766T1A-E2-AY.
We are offering UPA2766T1A-E2-AY for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UPA2766T1A-E2-AY - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single

Datasheet

UPA2766T1A

Standard Package

3000

Manufacturer

Renesas Electronics America

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

FET Type

N-Channel

Technology

MOSFET (Metal Oxide)

Drain to Source Voltage (Vdss)

30V

Current - Continuous Drain (Id) @ 25°C

130A (Tc)

Drive Voltage (Max Rds On, Min Rds On)

4.5V, 10V

Rds On (Max) @ Id, Vgs

1.82mOhm @ 39A, 4.5V

Vgs(th) (Max) @ Id

Gate Charge (Qg) (Max) @ Vgs

257nC @ 10V

Vgs (Max)

±20V

Input Capacitance (Ciss) (Max) @ Vds

10850pF @ 10V

FET Feature

Power Dissipation (Max)

1.5W (Ta), 83W (Tc)

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Supplier Device Package

8-HVSON (5.4x5.15)

Package / Case

8-PowerVDFN
