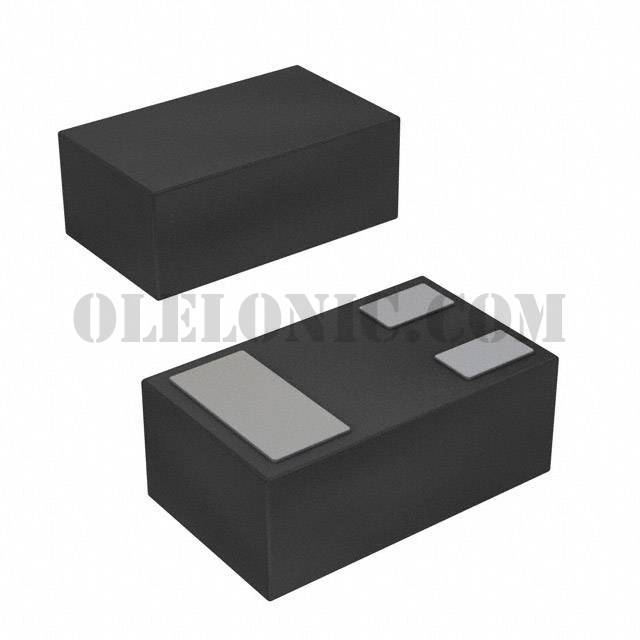

UNRF1A300A

Part NumberUNRF1A300A

ManufacturerPanasonic Electronic Components

DescriptionTRANS PREBIAS PNP 100MW ML3-N2

DatasheetUNRF1A3

Package / CaseSC-101, SOT-883

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) PNP - Pre-Biased 50V 80mA 150MHz 100mW Surface Mount ML3-N2

To learn about the specification of UNRF1A300A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UNRF1A300A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UNRF1A300A.
We are offering UNRF1A300A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UNRF1A300A - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased

Datasheet

UNRF1A3

Standard Package

10000

Manufacturer

Panasonic Electronic Components

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Transistor Type

PNP - Pre-Biased

Current - Collector (Ic) (Max)

80mA

Voltage - Collector Emitter Breakdown (Max)

50V

Resistor - Base (R1)

47 kOhms

Resistor - Emitter Base (R2)

47 kOhms

DC Current Gain (hFE) (Min) @ Ic, Vce

80 @ 5mA, 10V

Vce Saturation (Max) @ Ib, Ic

250mV @ 300µA, 10mA

Current - Collector Cutoff (Max)

500nA

Frequency - Transition

150MHz

Power - Max

100mW

Mounting Type

Surface Mount

Package / Case

SC-101, SOT-883

Supplier Device Package

ML3-N2
