Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMW Series
Standard Package	1
Manufacturer	Nichicon
Series	UMW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	27mA @ 120Hz
Ripple Current @ High Frequency	40.5mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMW1A330MDD1TP	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1V330MDD1TP	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1H220MDD1TP	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW0G221MDD1TP	Nichicon, 220µF 4V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW0G331MDD1TP	Nichicon, 330µF 4V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW0J330MDD1TP	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1HR33MDD1TP	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW0G470MDD1TP	Nichicon, 47µF 4V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1E470MDD1TP	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1HR22MDD1TP	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View
UMW1E100MDD1TP	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UMW	View

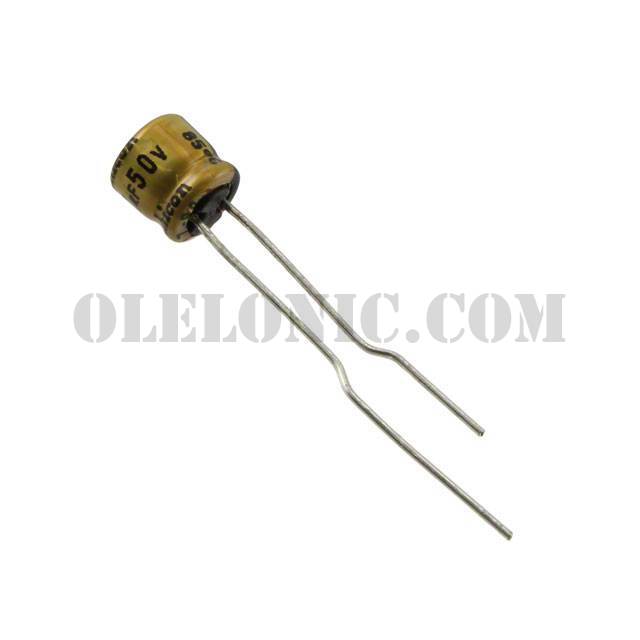

UMW1E100MDD1TP

Part NumberUMW1E100MDD1TP
