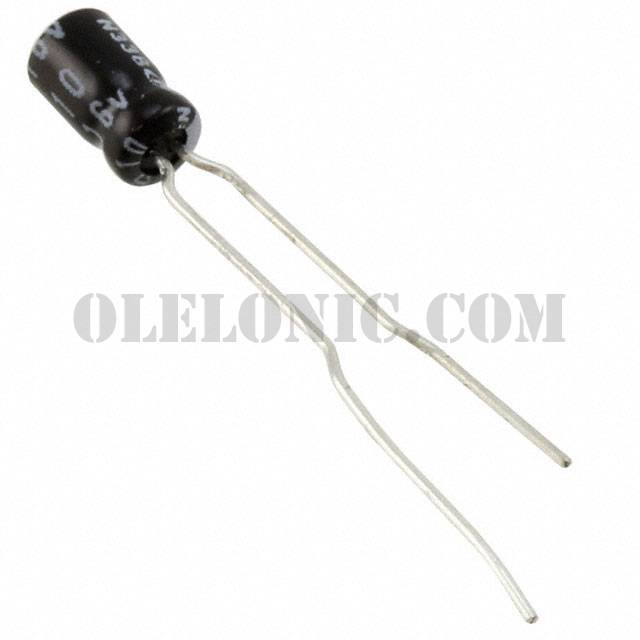

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMT Series
Standard Package	2000
Manufacturer	Nichicon
Series	UMT
Packaging	Tape & Box (TB)
Part Status	Not For New Designs
Capacitance	0.33µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	3.2mA @ 120Hz
Ripple Current @ High Frequency	4.8mA @ 10kHz
Lead Spacing	0.039" (1.00mm)
Size / Dimension	0.118" Dia (3.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMT1H2R2MCD2	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1C330MDD1TP	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1C470MDD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1E100MDD1TP	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1E4R7MDD1TP	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT0J330MDD1TP	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1HR47MDD1TP	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1A470MDD1TP	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1E330MDD	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1E330MDD1TP	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT1HR33MDD1TP	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View
UMT0G220MDD1TP	Nichicon, 22µF 4V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UMT	View

UMT1HR33MCD2TP

Part NumberUMT1HR33MCD2TP
