Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMP Series
Standard Package	2000
Manufacturer	Nichicon
Series	UMP
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	29mA @ 120Hz
Ripple Current @ High Frequency	43.5mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMP0J330MDD	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1V100MDD1TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1E100MDD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1V2R2MDD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C100MDD1TP	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J220MDD1TP	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A220MDD1TP	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A330MDD1TP	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C4R7MDD1TP	Nichicon, 4.7µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1HR22MDD1TP	Nichicon, 0.22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H010MDD1TP	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H0R1MDD1TP	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View

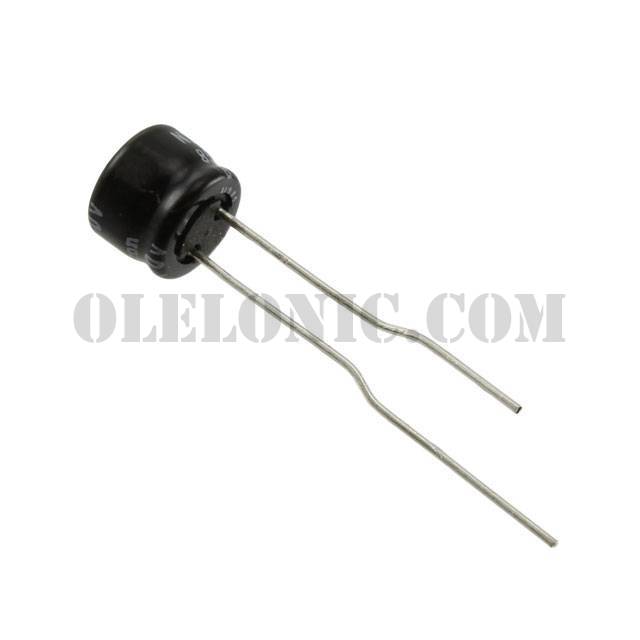

UMP1V100MDD1TP

Part NumberUMP1V100MDD1TP
