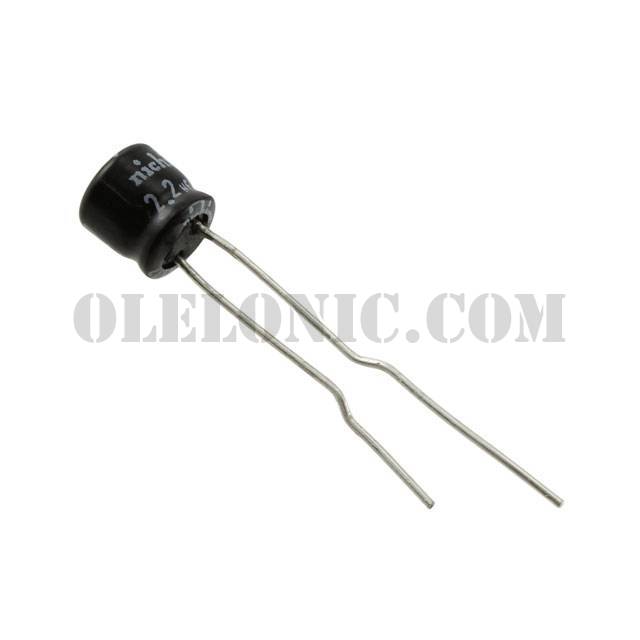

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMP Series
Standard Package	2000
Manufacturer	Nichicon
Series	UMP
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	3.3µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	12mA @ 120Hz
Ripple Current @ High Frequency	18mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMP1E4R7MDD1TP	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1V2R2MDD	Nichicon, 2.2µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A100MDD1TP	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1HR33MDD1TP	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1E100MDD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A220MDD1TP	Nichicon, 22µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1E3R3MDD1TP	Nichicon, 3.3µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J330MDD1TP	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C100MDD1TP	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A100MDD1TP	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H2R2MDD1TP	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1V100MDD1TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View

UMP1E3R3MDD1TP

Part NumberUMP1E3R3MDD1TP
