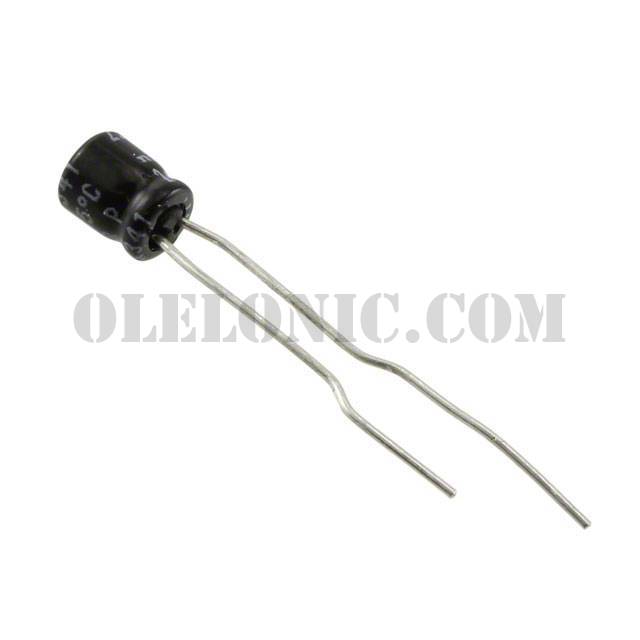

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMP Series
Standard Package	1
Manufacturer	Nichicon
Series	UMP
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	10µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	17mA @ 120Hz
Ripple Current @ High Frequency	25.5mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMP1H010MDD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J220MDD1TP	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A100MDD	Nichicon, 10µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J330MDD1TP	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1A330MDD1TP	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C220MDD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1V100MDD1TP	Nichicon, 10µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H2R2MDD1TP	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1H4R7MDD1TP	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP0J330MDD1TP	Nichicon, 33µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1E100MDD1TP	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View
UMP1C100MDD	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMP	View

UMP1A100MDD1TP

Part NumberUMP1A100MDD1TP
