UMC3NTR

Part NumberUMC3NTR

ManufacturerRohm Semiconductor

DescriptionTRANS NPN/PNP PREBIAS 0.15W UMT5

DatasheetUMC3N/FMC3A

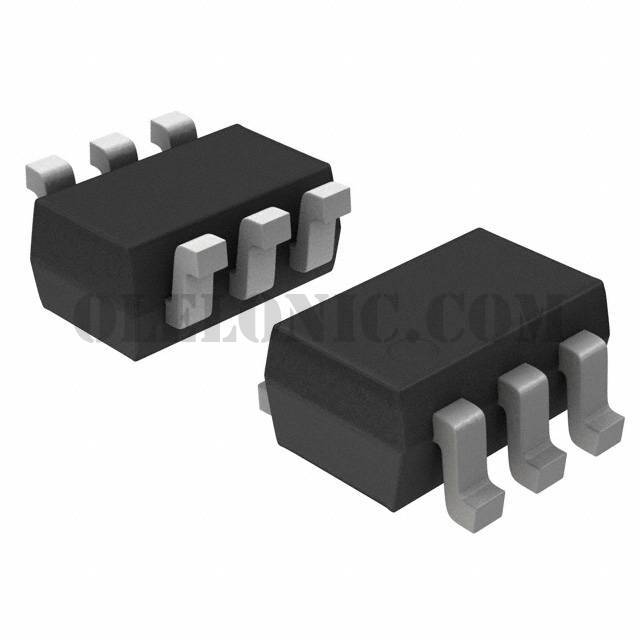

Package / Case5-TSSOP, SC-70-5, SOT-353

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) 1 NPN, 1 PNP - Pre-Biased (Dual) 50V 100mA 250MHz 150mW Surface Mount UMT5

To learn about the specification of UMC3NTR, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UMC3NTR with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UMC3NTR.
We are offering UMC3NTR for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UMC3NTR - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays, Pre-Biased

Datasheet

UMC3N/FMC3A

Standard Package

3000

Manufacturer

Rohm Semiconductor

Series

Packaging

Tape & Reel (TR)

Part Status

Not For New Designs

Transistor Type

1 NPN, 1 PNP - Pre-Biased (Dual)

Current - Collector (Ic) (Max)

100mA

Voltage - Collector Emitter Breakdown (Max)

50V

Resistor - Base (R1)

10kOhms

Resistor - Emitter Base (R2)

10kOhms

DC Current Gain (hFE) (Min) @ Ic, Vce

30 @ 5mA, 5V

Vce Saturation (Max) @ Ib, Ic

300mV @ 500µA, 10mA

Current - Collector Cutoff (Max)

500nA (ICBO)

Frequency - Transition

250MHz

Power - Max

150mW

Mounting Type

Surface Mount

Package / Case

5-TSSOP, SC-70-5, SOT-353

Supplier Device Package

UMT5
