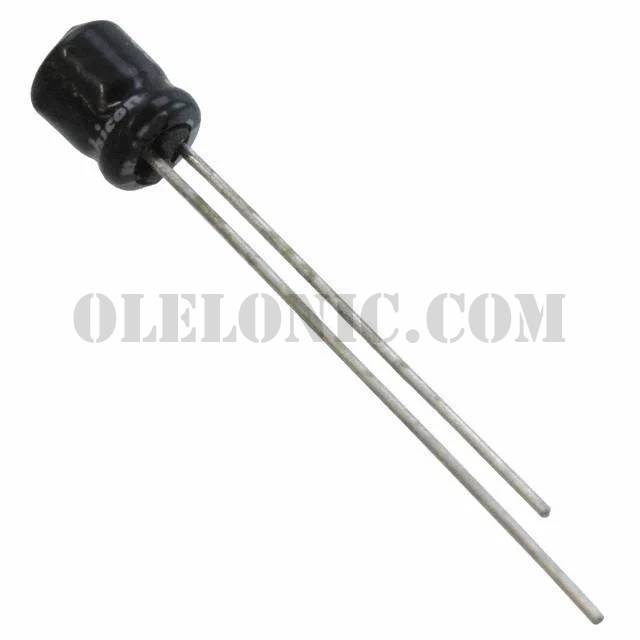

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UMA Series
Standard Package	1
Manufacturer	Nichicon
Series	UMA
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	8.4mA @ 120Hz
Ripple Current @ High Frequency	12.6mA @ 10kHz
Lead Spacing	0.059" (1.50mm)
Size / Dimension	0.157" Dia (4.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UMA0J101MDD1TP	Nichicon, 100µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1E330MDD1TP	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1E101MDD1TP	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1C101MDD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1V470MDD1TP	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0G101MDD1TP	Nichicon, 100µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0G101MDD	Nichicon, 100µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0J100MCD2	Nichicon, 10µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA0G220MCD2TP	Nichicon, 22µF 4V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1A470MDD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1H2R2MDD1TP	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View
UMA1H220MDD1TP	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UMA	View

UMA1H010MDD1TP

Part NumberUMA1H010MDD1TP
