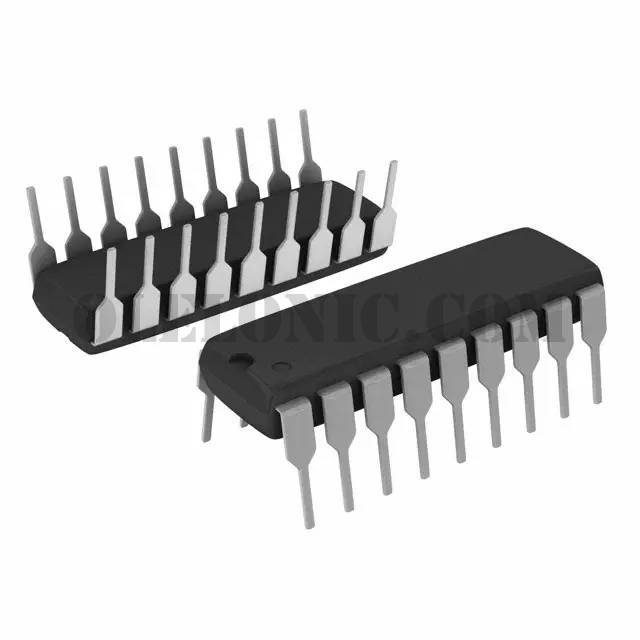

ULN2803APG,CN

Part NumberULN2803APG,CN

ManufacturerToshiba Semiconductor and Storage

DescriptionTRANS 8NPN DARL 50V 0.5A 18DIP

DatasheetULN2803, ULN2804 APG, AFWG Datasheet

Package / Case18-DIP (0.300", 7.62mm)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA 1.47W Through Hole 18-DIP

To learn about the specification of ULN2803APG,CN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2803APG,CN with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2803APG,CN.
We are offering ULN2803APG,CN for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2803APG,CN - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays

Datasheet

ULN2803, ULN2804 APG, AFWG Datasheet

Standard Package

800

Manufacturer

Toshiba Semiconductor and Storage

Series

Packaging

Tube

Part Status

Obsolete

Transistor Type

8 NPN Darlington

Current - Collector (Ic) (Max)

500mA

Voltage - Collector Emitter Breakdown (Max)

50V

Vce Saturation (Max) @ Ib, Ic

1.6V @ 500µA, 350mA

Current - Collector Cutoff (Max)

DC Current Gain (hFE) (Min) @ Ic, Vce

1000 @ 350mA, 2V

Power - Max

1.47W

Frequency - Transition

Operating Temperature

-40°C ~ 85°C (TA)

Mounting Type

Through Hole

Package / Case

18-DIP (0.300", 7.62mm)

Supplier Device Package

18-DIP

Base Part Number

ULN280*A
