ULN2803AFWG,C,EL

Part NumberULN2803AFWG,C,EL

ManufacturerToshiba Semiconductor and Storage

DescriptionTRANS 8NPN DARL 50V 0.5A 18SOL

DatasheetULN2803,04APG/AFWG Datasheet

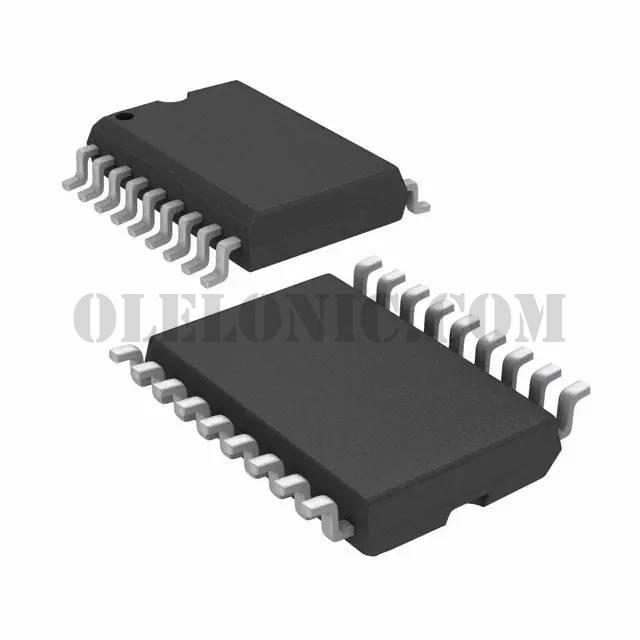

Package / Case18-SOIC (0.295", 7.50mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 8 NPN Darlington 50V 500mA 1.31W Surface Mount 18-SOL

To learn about the specification of ULN2803AFWG,C,EL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2803AFWG,C,EL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2803AFWG,C,EL.
We are offering ULN2803AFWG,C,EL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2803AFWG,C,EL - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays

Datasheet

ULN2803,04APG/AFWG Datasheet

Standard Package

1000

Manufacturer

Toshiba Semiconductor and Storage

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Transistor Type

8 NPN Darlington

Current - Collector (Ic) (Max)

500mA

Voltage - Collector Emitter Breakdown (Max)

50V

Vce Saturation (Max) @ Ib, Ic

1.6V @ 500µA, 350mA

Current - Collector Cutoff (Max)

DC Current Gain (hFE) (Min) @ Ic, Vce

1000 @ 350mA, 2V

Power - Max

1.31W

Frequency - Transition

Operating Temperature

-40°C ~ 85°C (TA)

Mounting Type

Surface Mount

Package / Case

18-SOIC (0.295", 7.50mm Width)

Supplier Device Package

18-SOL

Base Part Number

ULN280*A
