ULN2003V12T16-13

Part NumberULN2003V12T16-13

ManufacturerDiodes Incorporated

DescriptionIC PWR RELAY N-CHAN 1:1 16TSSOP

DatasheetULN2003V,F12 Datasheet

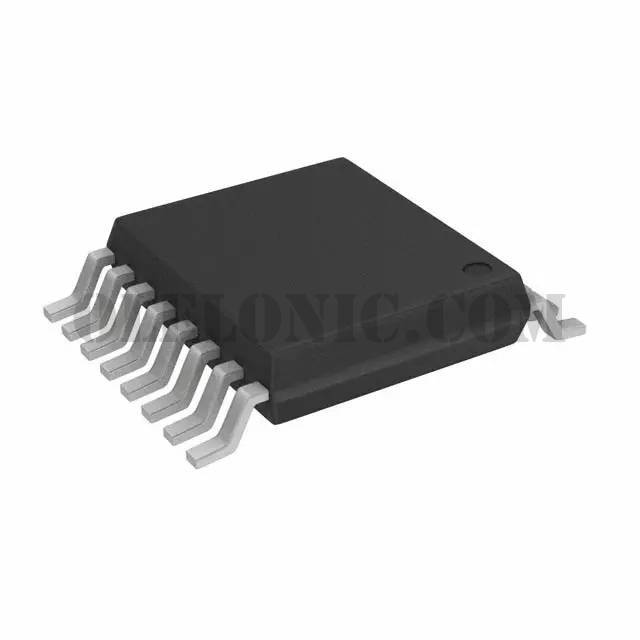

Package / Case16-TSSOP (0.173", 4.40mm Width)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 7 NPN Darlington 50V 500mA Surface Mount 16-TSSOP

To learn about the specification of ULN2003V12T16-13, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2003V12T16-13 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2003V12T16-13.
We are offering ULN2003V12T16-13 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2003V12T16-13 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULN2003V,F12 Datasheet
Standard Package	2500
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	7 NPN Darlington
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	50V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Power - Max	-
Frequency - Transition	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package	16-TSSOP
