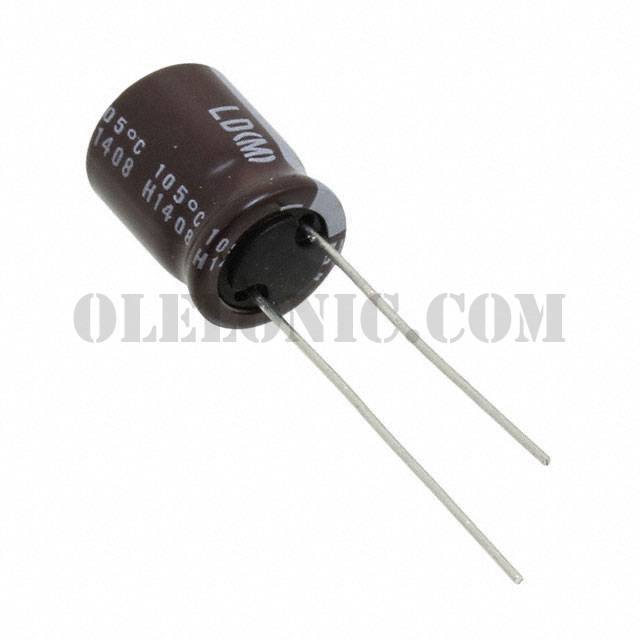

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	ULD Series
Standard Package	200
Manufacturer	Nichicon
Series	ULD
Packaging	Bulk
Part Status	Active
Capacitance	3.9µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	15000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	57mA @ 120Hz
Ripple Current @ High Frequency	104mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.571" (14.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

ULD1C271MPD1TD	Nichicon, 270µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2D8R2MPD1TD	Nichicon, 8.2µF 200V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2G2R7MPD	Nichicon, 2.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View
ULD2G6R8MPD1TD	Nichicon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2W8R2MPD1TD	Nichicon, 8.2µF 450V Aluminum Electrolytic Capacitors Radial, Can 20000 Hrs @ 105°C, ULD	View
ULD2D4R7MED1TD	Nichicon, 4.7µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2E8R2MPD1TD	Nichicon, 8.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2E2R2MED1TD	Nichicon, 2.2µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD2A220MPD1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2G3R3MPD6	Nichicon, 3.3µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, ULD	View
ULD1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, ULD	View
ULD2G4R7MPD1TD	Nichicon, 4.7µF 400V Aluminum Electrolytic Capacitors Radial, Can 15000 Hrs @ 105°C, ULD	View

ULD2G3R9MPD

Part NumberULD2G3R9MPD
