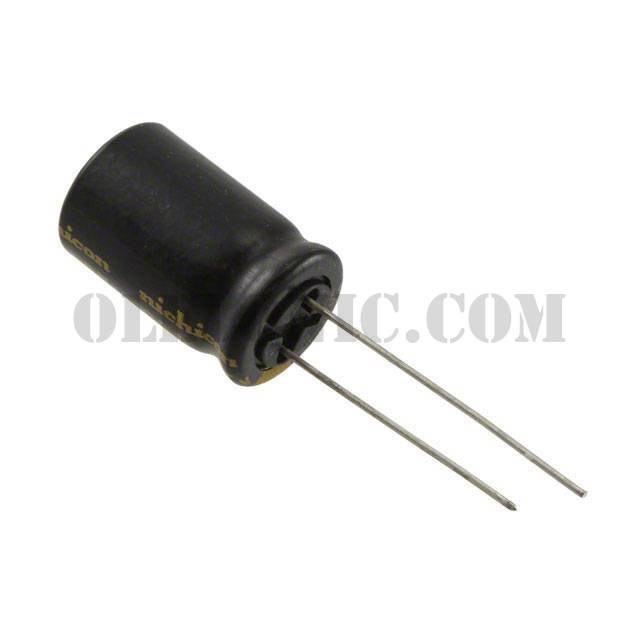

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKW Series
Standard Package	1
Manufacturer	Nichicon
Series	UKW
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	16V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.25A @ 120Hz
Ripple Current @ High Frequency	1.4375A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKW1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW0J332MPD1TD	Nichicon, 3300µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A222MRD	Nichicon, 2200µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1J102MHD1TN	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1A472MHD1TO	Nichicon, 4700µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1E471MPD1TD	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A2R2MDD1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1H2R2MDD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW2A220MED1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW1V221MPD1TD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View
UKW0J331MED1TD	Nichicon, 330µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKW	View

UKW1C222MHD1TO

Part NumberUKW1C222MHD1TO
