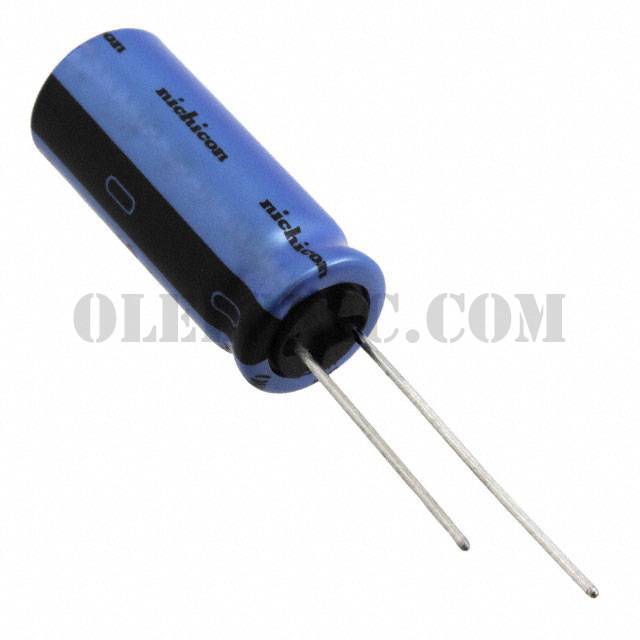

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKT Series
Standard Package	100
Manufacturer	Nichicon
Series	UKT
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	-
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.2A @ 120Hz
Ripple Current @ High Frequency	1.38A @ 10kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.240" (31.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
