Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKL Series Datasheet
Standard Package	2000
Manufacturer	Nichicon
Series	UKL
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	2.2µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	23mA @ 120Hz
Ripple Current @ High Frequency	46mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKL1H471MHD1TN	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H151MPD1TD	Nichicon, 150µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL2AR33MDD1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H010MDD1TD	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL2A221MHD1TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL2AR22MDD1TD	Nichicon, 0.22µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1J331MHD1TO	Nichicon, 330µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1H0R1MDD1TD	Nichicon, 0.1µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E4R7MDD1TD	Nichicon, 4.7µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1C220KDDANATA	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View
UKL1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UKL	View
UKL1E220MDDANA	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 105°C, UKL	View

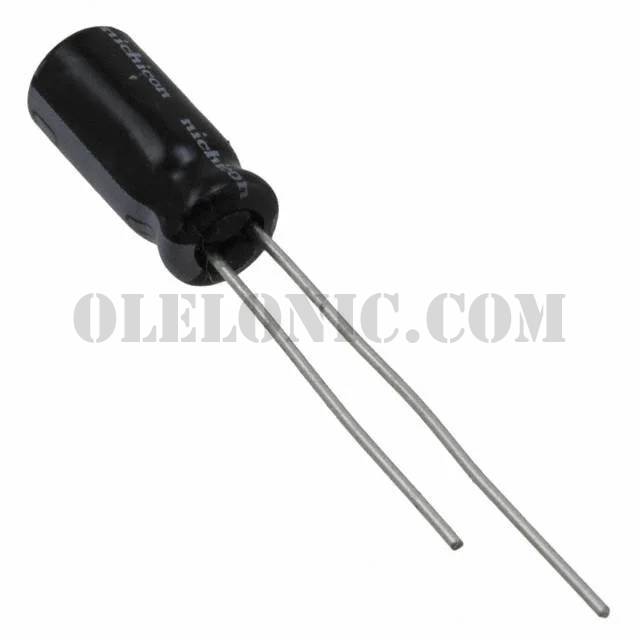

UKL1H2R2MDD1TD

Part NumberUKL1H2R2MDD1TD
