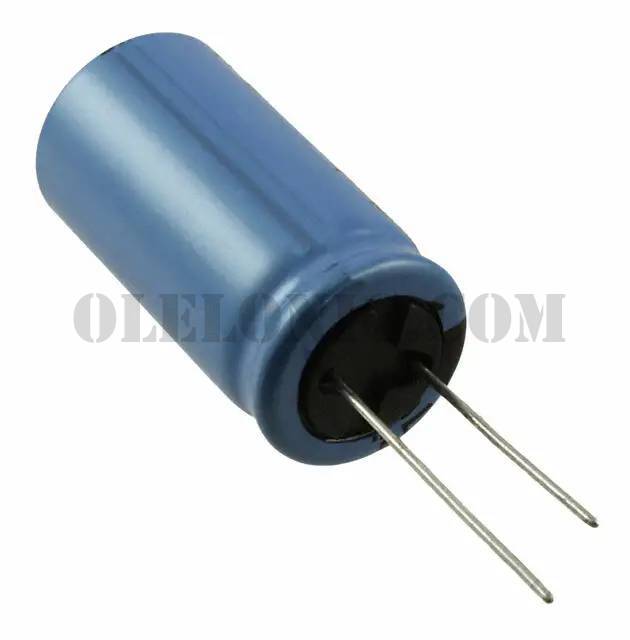

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKA Series
Standard Package	50
Manufacturer	Nichicon
Series	UKA
Packaging	Bulk
Part Status	Active
Capacitance	4700µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.91A @ 120Hz
Ripple Current @ High Frequency	2.1965A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKA1C220MDD1TD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1V102MHD1TO	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA0J102MPD1TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1H101MPD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C331MPD1TD	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1A470MDD	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1A103MHD	Nichicon, 10000µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1A471MPD1TD	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1E220MDD1TD	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C220MDD1TD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C101MDD1TD	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1E471MPD1TD	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View

UKA1V472MHD

Part NumberUKA1V472MHD
