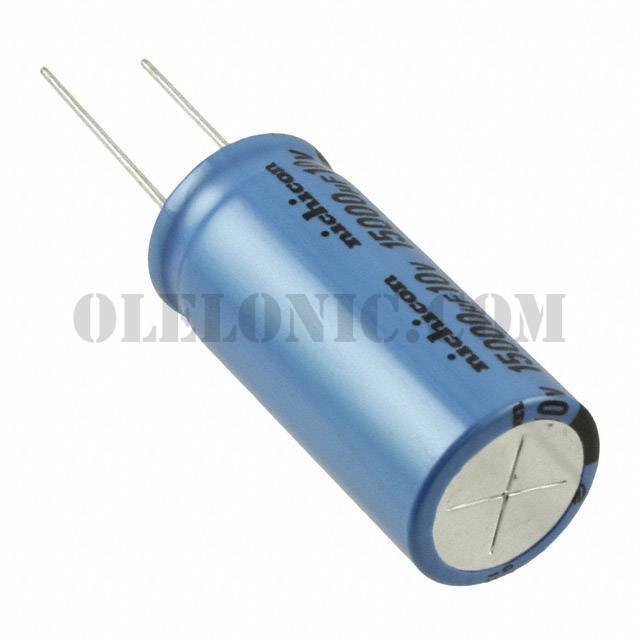

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UKA Series
Standard Package	50
Manufacturer	Nichicon
Series	UKA
Packaging	Bulk
Part Status	Active
Capacitance	15000µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	2.4A @ 120Hz
Ripple Current @ High Frequency	2.76A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.634" (41.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UKA1A332MHD1TO	Nichicon, 3300µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1E220MDD1TD	Nichicon, 22µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1A101MDD1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1V220MDD1TD	Nichicon, 22µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C220MDD1TD	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C222MHD	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1H330MDD	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA0J220MDD1TD	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1C470MDD1TD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA0J472MHD	Nichicon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View
UKA1H470MED1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 105°C, UKA	View

UKA1A153MHD

Part NumberUKA1A153MHD
