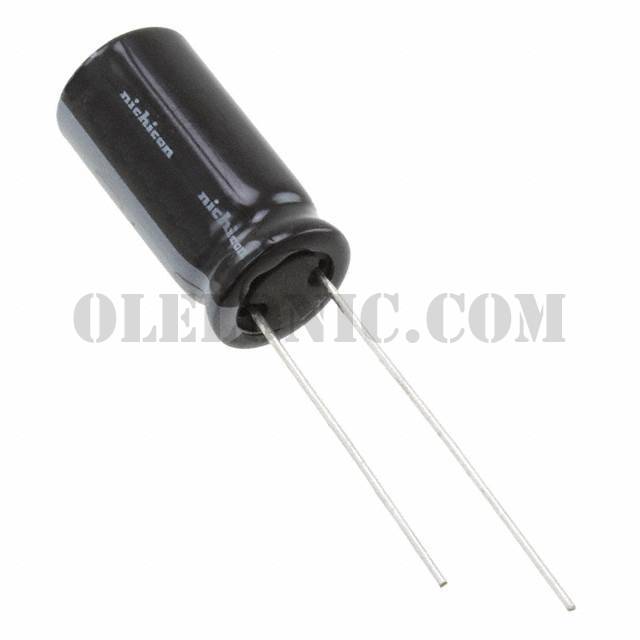

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHW Series Datasheet
Standard Package	500
Manufacturer	Nichicon
Series	UHW
Packaging	Tape & Box (TB)
Part Status	Active
Capacitance	180µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	572mA @ 120Hz
Ripple Current @ High Frequency	1.43A @ 100kHz
Impedance	88 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.866" (22.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHW1A122MPD	Nichicon, 1200µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A820MPD	Nichicon, 82µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K561MHD6TN	Nichicon, 560µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J271MPD1TD	Nichicon, 270µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K182MHD	Nichicon, 1800µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1A182MPD	Nichicon, 1800µF 10V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K471MHD6TN	Nichicon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K121MPD1TD	Nichicon, 120µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A101MPD1TD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K271MHD6TO	Nichicon, 270µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A471MHD6TN	Nichicon, 470µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A101MHD6	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View

UHW1K181MPD1TD

Part NumberUHW1K181MPD1TD
