Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHW Series Datasheet
Standard Package	100
Manufacturer	Nichicon
Series	UHW
Packaging	Bulk
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.86A @ 120Hz
Ripple Current @ High Frequency	3.1A @ 100kHz
Impedance	33 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHW2A101MPD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1C472MHD6	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1E222MHD6	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW2A391MHD3TN	Nichicon, 390µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J122MHD6TN	Nichicon, 1200µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW0J472MHD	Nichicon, 4700µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K561MHD6TN	Nichicon, 560µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW0J123MHD	Nichicon, 12000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1J102MHD6TN	Nichicon, 1000µF 63V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1K271MHD6TO	Nichicon, 270µF 80V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1H471MHD6	Nichicon, 470µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View
UHW1E102MPD	Nichicon, 1000µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHW	View

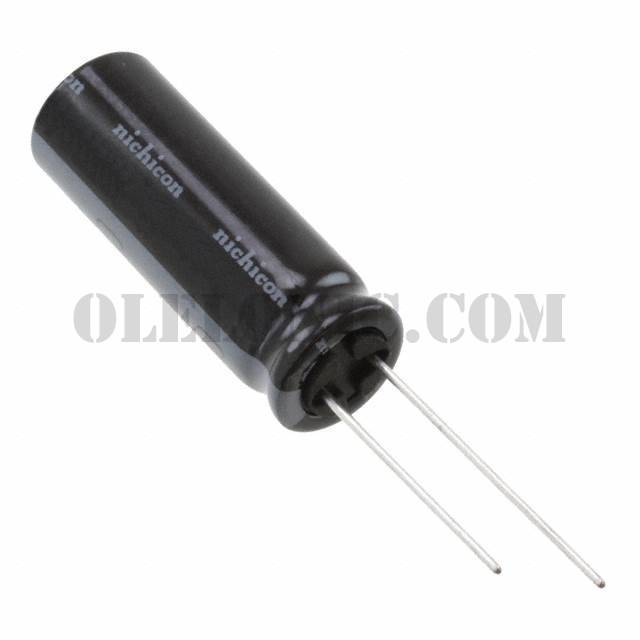

UHW1J102MHD

Part NumberUHW1J102MHD
