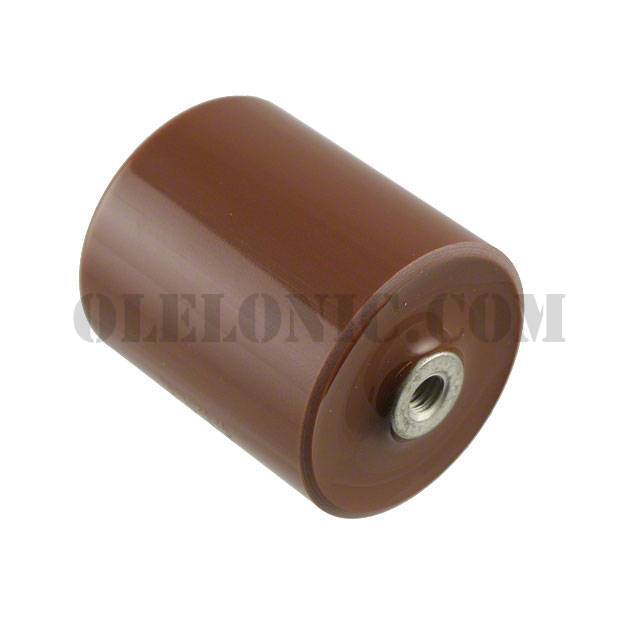

UHV-242A


UHV-242A

Part NumberUHV-242A

Manufacturer

Description

Datasheet

Package / CaseDisk, Metal Fitting - Threaded

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UHV-242A - Product Attributes

Categories Capacitors / Ceramic Capacitors
Datasheet
Standard Package1
ManufacturerTDK Corporation
SeriesUHV
PackagingBulk
Part StatusActive
Capacitance200pF
Tolerance±10%
Voltage - Rated40000V (40kV)
Temperature CoefficientZ5T
Operating Temperature-30°C ~ 85°C
FeaturesHigh Voltage, Low Dissipation Factor
Ratings-
ApplicationsGeneral Purpose
Failure Rate-
Mounting TypeRequires Holder
Package / CaseDisk, Metal Fitting - Threaded
Size / Dimension0.984" Dia x 1.260" L (25.00mm x 32.00mm)
Height - Seated (Max)-
Thickness (Max)-
Lead Spacing-
Lead Style-
