Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHE Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UHE
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	7000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	588mA @ 120Hz
Ripple Current @ High Frequency	840mA @ 100kHz
Impedance	87 mOhms
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UHE2A150MED1TD	Nichicon, 15µF 100V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHE	View
UHE1E332MHD6	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1J150MDD	Nichicon, 15µF 63V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C, UHE	View
UHE1V122MHD6	Nichicon, 1200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1V182MHD3	Nichicon, 1800µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE2A221MHD6TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE2A221MHD6TN	Nichicon, 220µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE2A181MHD1TO	Nichicon, 180µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1E471MPD6	Nichicon, 470µF 25V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UHE	View
UHE1H561MHD6TN	Nichicon, 560µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1V222MHD6	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1V221MPD1TD	Nichicon, 220µF 35V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UHE	View

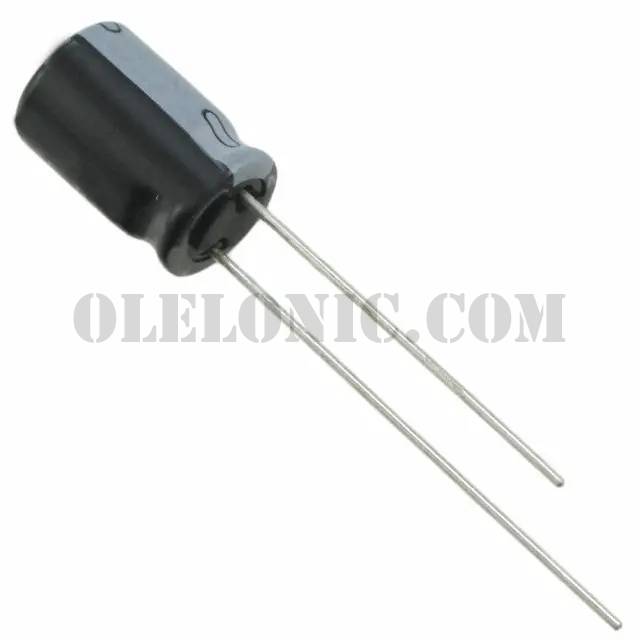

UHE1V221MPD1TA

Part NumberUHE1V221MPD1TA
