Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UHE Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UHE
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	1000µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.658A @ 120Hz
Ripple Current @ High Frequency	2.21A @ 100kHz
Impedance	43 mOhms
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.650" (16.50mm)
Surface Mount Land Size	-

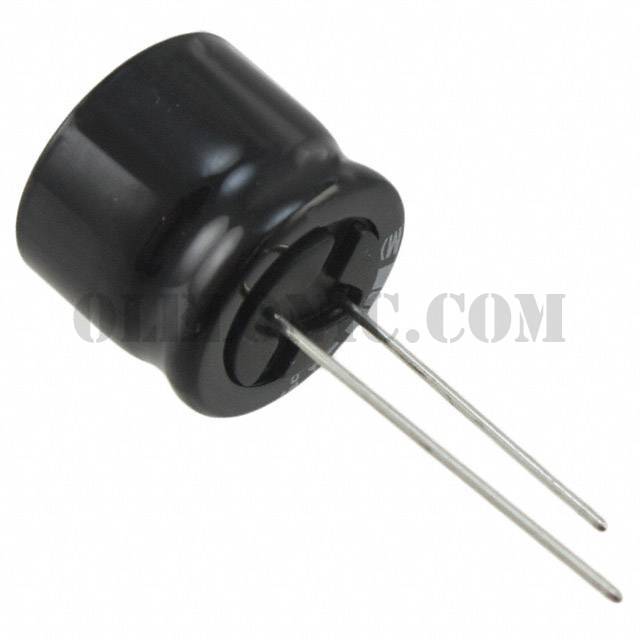

Mounting Type	Through Hole
Package / Case	Radial, Can

UHE1C471MPD6TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UHE	View
UHE1H102MHD6TN	Nichicon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1H821MHD	Nichicon, 820µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1V102MHD6TN	Nichicon, 1000µF 35V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 7000 Hrs @ 105°C, UHE	View
UHE0J821MPD1TD	Nichicon, 820µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C, UHE	View
UHE0J392MHD6	Nichicon, 3900µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UHE	View
UHE1A392MHD6	Nichicon, 3900µF 10V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UHE	View
UHE1H102MHD6	Nichicon, 1000µF 50V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE1E182MHD	Nichicon, 1800µF 25V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View
UHE0J682MHD3	Nichicon, 6800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UHE	View
UHE1C472MHD	Nichicon, 4700µF 16V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UHE	View

UHE1V102MHD6TN

Part NumberUHE1V102MHD6TN
