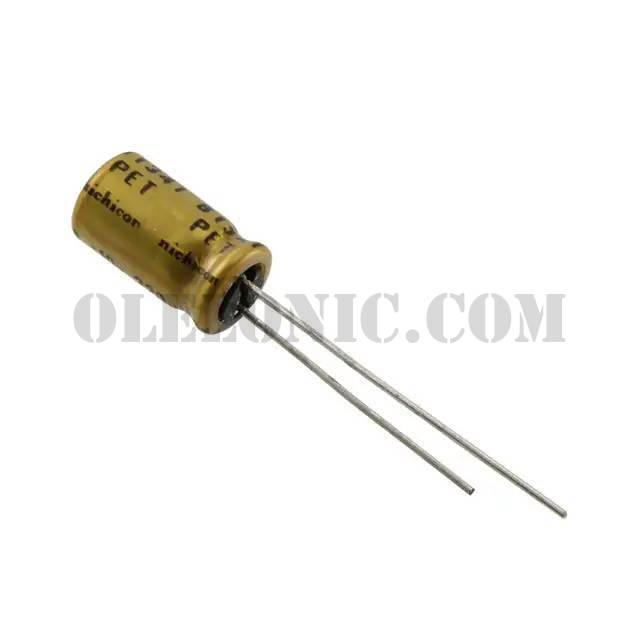

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFW Series
Standard Package	200
Manufacturer	Nichicon
Series	UFW
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	200mA @ 120Hz
Ripple Current @ High Frequency	300mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFW1H220MDD	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C223MRD	Nichicon, 22000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A101MPD1TD	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1J472MRD	Nichicon, 4700µF 63V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A0R1MDD1TD	Nichicon, 0.1µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C332MHD1TO	Nichicon, 3300µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW0J471MED	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW0J103MHD1TN	Nichicon, 10000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C221MED1TD	Nichicon, 220µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW0J471MED1TD	Nichicon, 470µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View

UFW1V101MED

Part NumberUFW1V101MED
