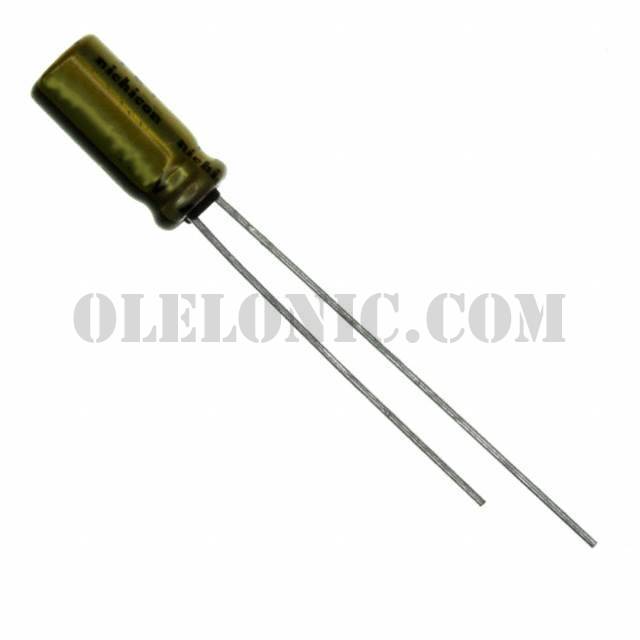

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFW Series
Standard Package	2000
Manufacturer	Nichicon
Series	UFW
Packaging	Tape & Box (TB)
Part Status	Not For New Designs
Capacitance	1µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	10mA @ 120Hz
Ripple Current @ High Frequency	20mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFW1HR47MDD1TD	Nichicon, 0.47µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1H3R3MDD1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C153MRD	Nichicon, 15000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C102MPD1TD	Nichicon, 1000µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1V222MHD1TN	Nichicon, 2200µF 35V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1E332MHD1TN	Nichicon, 3300µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW2A2R2MDD1TD	Nichicon, 2.2µF 100V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1C471MPD1TD	Nichicon, 470µF 16V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1H331MPD	Nichicon, 330µF 50V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1A471MED1TD	Nichicon, 470µF 10V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View
UFW1E153MRD	Nichicon, 15000µF 25V Aluminum Electrolytic Capacitors Radial, Can 2000 Hrs @ 85°C, UFW	View

UFW1H010MDD1TD

Part NumberUFW1H010MDD1TD
