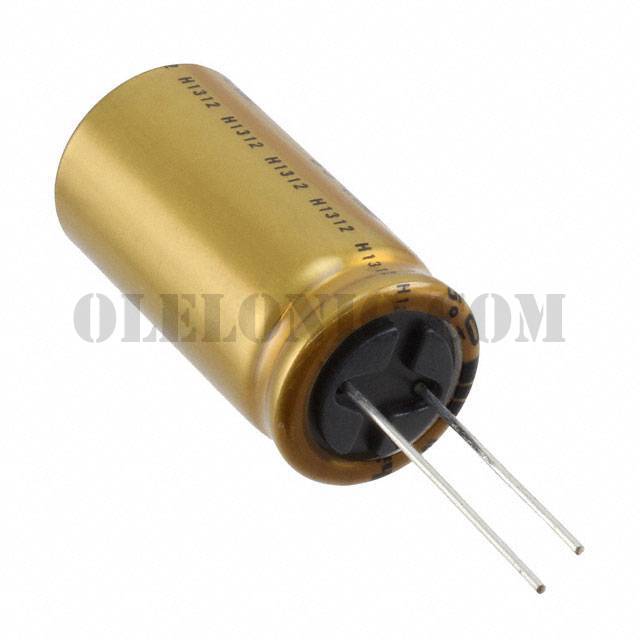

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UFG
Packaging	Bulk
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.84A @ 120Hz
Ripple Current @ High Frequency	2.116A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG2A0R1MDM1TD	Nichicon, 0.1µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H2R2MDM	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1K101MHM1TO	Nichicon, 100µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1A102MHM1TO	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A101MHM1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1K470MPM1TD	Nichicon, 47µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2AR33MDM1TD	Nichicon, 0.33µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1HR33MDM1TD	Nichicon, 0.33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H101MPM1TD	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V471MHM1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG0J102MPM1TD	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A470MPM1TD	Nichicon, 47µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1V222MHM

Part NumberUFG1V222MHM
