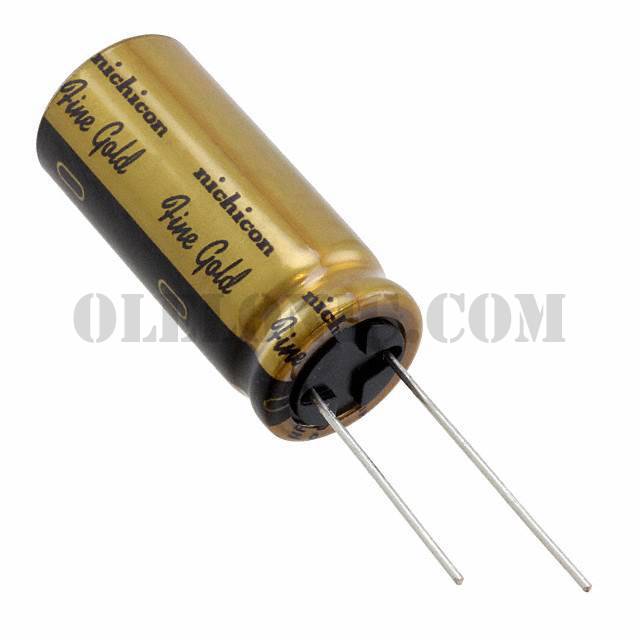

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UFG
Packaging	Bulk
Part Status	Active
Capacitance	470µF
Tolerance	±20%
Voltage - Rated	80V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	920mA @ 120Hz
Ripple Current @ High Frequency	1.38A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG2A220MPM1TD	Nichicon, 22µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG0J222MHM1TO	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V101MPM	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1A331MPM1TD	Nichicon, 330µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1J101MPM	Nichicon, 100µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A0R1MDM1TD	Nichicon, 0.1µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H3R3MDM1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H470MPM1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1200MBN45X65	Rubycon, 1200µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
450UFG680MBN35X65	Rubycon, 680µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG1J471MHM1TN	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1000MBN40X70	Rubycon, 1000µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View

UFG1K471MHM

Part NumberUFG1K471MHM
