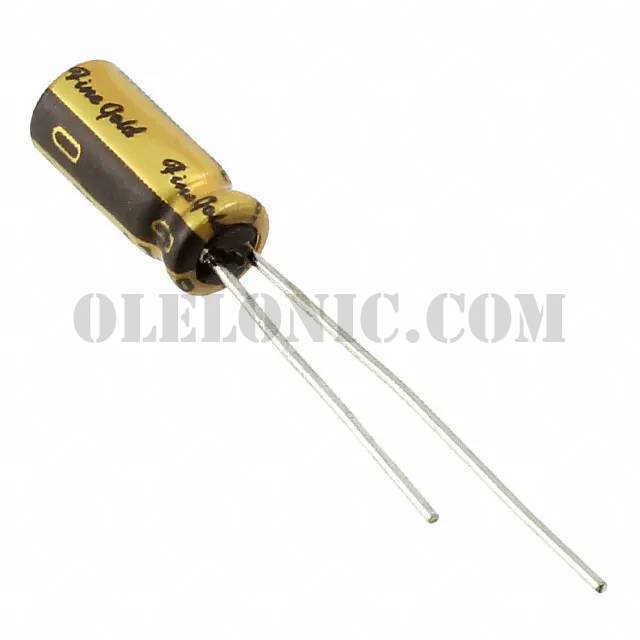

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UFG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	50mA @ 120Hz
Ripple Current @ High Frequency	100mA @ 10kHz
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG1H3R3MDM1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1K330MPM1TD	Nichicon, 33µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1A102MHM1TO	Nichicon, 1000µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V471MHM1TO	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1V330MEM1TD	Nichicon, 33µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H470MPM1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H2R2MDM1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1E101MPM1TD	Nichicon, 100µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1200MBN35X100	Rubycon, 1200µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG1E330MEM1TD	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1E330MEM	Nichicon, 33µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1J471MHM1TN	Nichicon, 470µF 63V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1E220MDM1TD

Part NumberUFG1E220MDM1TD
