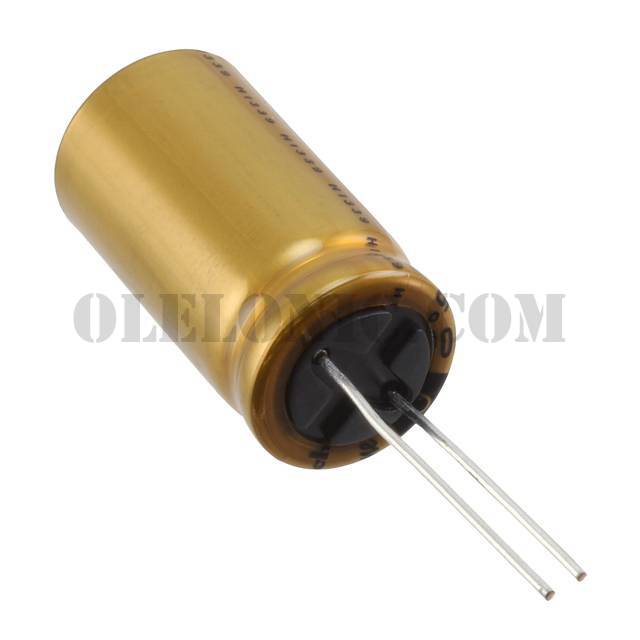

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UFG Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UFG
Packaging	Bulk
Part Status	Active
Capacitance	3300µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.52A @ 120Hz
Ripple Current @ High Frequency	1.748A @ 10kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UFG1C222MHM1TO	Nichicon, 2200µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A101MHM1TO	Nichicon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1C330MDM1TD	Nichicon, 33µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1E470MEM1TD	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1H470MPM1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1200MBN35X100	Rubycon, 1200µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG1H100MDM1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
450UFG1000MBN40X70	Rubycon, 1000µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 85°C, UFG	View
UFG1E470MEM	Nichicon, 47µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG0J222MHM1TO	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG1K471MHM	Nichicon, 470µF 80V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View
UFG2A3R3MDM1TD	Nichicon, 3.3µF 100V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UFG	View

UFG1A332MHM

Part NumberUFG1A332MHM
