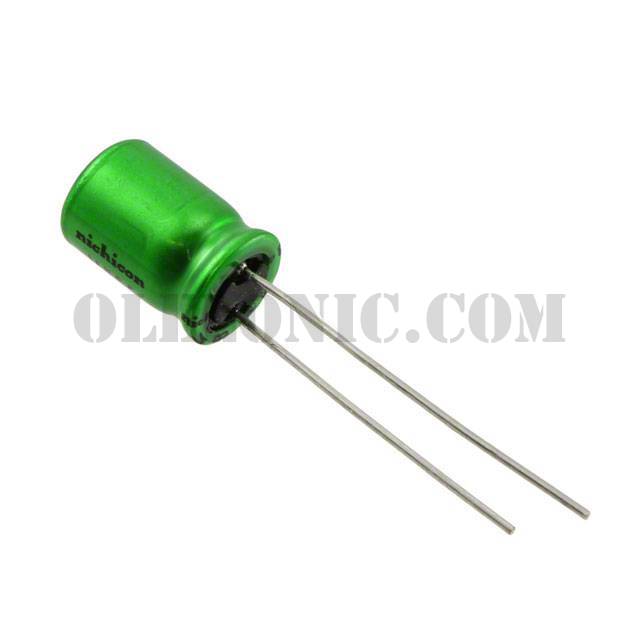

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UES Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UES
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	Audio
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.512" (13.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UES1A470MEM	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1H100MPM1TD	Nichicon, 10µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1H470MPM1TD	Nichicon, 47µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1H221MHM1TN	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1E331MHM	Nichicon, 330µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1H101MHM	Nichicon, 100µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1A101MPM1TD	Nichicon, 100µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1V471MHM1TN	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1A330MEM	Nichicon, 33µF 10V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES0J470MEM1TD	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1E100MDM1TD	Nichicon, 10µF 25V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View
UES1C470MPM1TD	Nichicon, 47µF 16V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UES	View

UES1V220MPM1TD

Part NumberUES1V220MPM1TD
