Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	UES1301-1303, BYV28-50,100,150
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Packaging	Bulk
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	100V
Current - Average Rectified (Io)	6A
Voltage - Forward (Vf) (Max) @ If	925mV @ 6A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	30ns
Current - Reverse Leakage @ Vr	5µA @ 100V
Capacitance @ Vr, F	-
Mounting Type	Through Hole

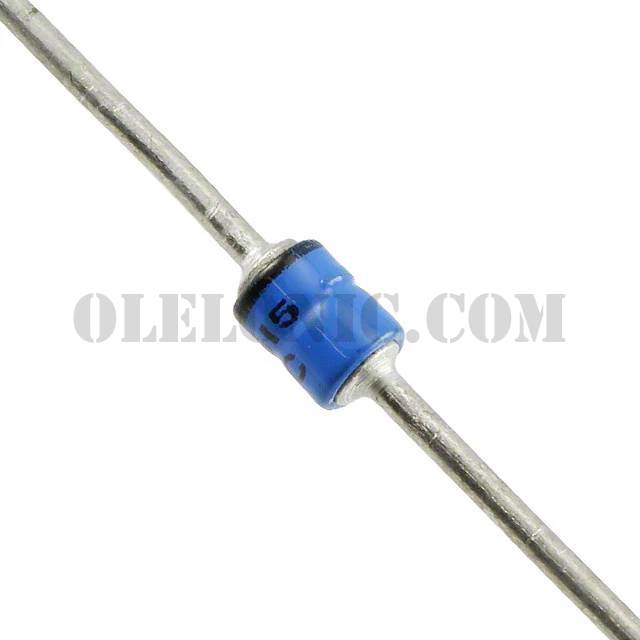

Package / Case	Axial
Supplier Device Package	Axial
Operating Temperature - Junction	-55°C ~ 175°C
