UCZ2A220MCL1GS

Part NumberUCZ2A220MCL1GS

ManufacturerNichicon

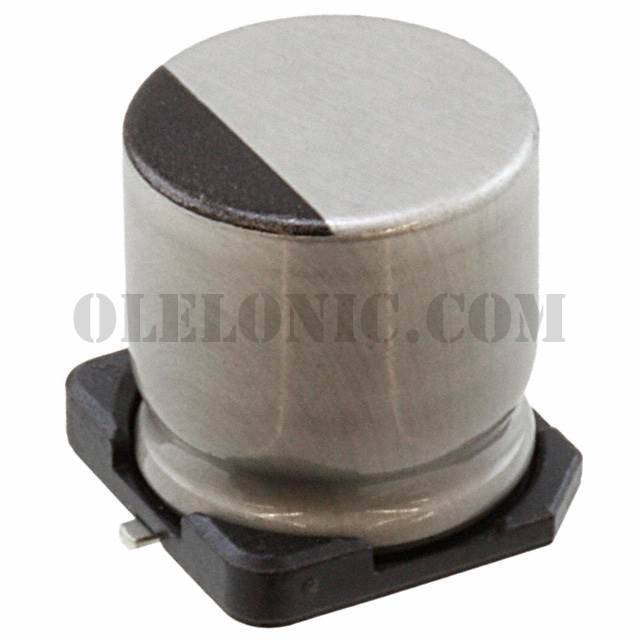

DescriptionCAP ALUM 22UF 20% 100V SMD

DatasheetUCZ Series

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 550mOhm 3000 Hrs @ 125°C

To learn about the specification of UCZ2A220MCL1GS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCZ2A220MCL1GS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCZ2A220MCL1GS.
We are offering UCZ2A220MCL1GS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UCZ2A220MCL1GS - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCZ Series
Standard Package	500
Manufacturer	Nichicon
Series	UCZ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	550mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	57.5mA @ 120Hz
Ripple Current @ High Frequency	115mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.406" (10.30mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
