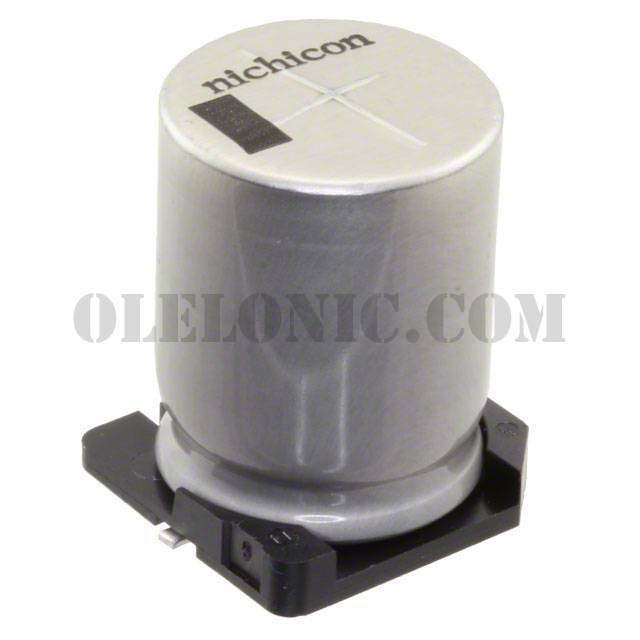

UCZ2A151MNQ1MS

Part NumberUCZ2A151MNQ1MS

ManufacturerNichicon

DescriptionCAP ALUM 150UF 20% 100V SMD

DatasheetUCZ Series

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description150µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 190mOhm @ 100kHz 3500 Hrs @ 125°C

To learn about the specification of UCZ2A151MNQ1MS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCZ2A151MNQ1MS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCZ2A151MNQ1MS.
We are offering UCZ2A151MNQ1MS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

UCZ2A151MNQ1MS - Product Attributes

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCZ Series
Standard Package	125
Manufacturer	Nichicon
Series	UCZ
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	190mOhm @ 100kHz
Lifetime @ Temp.	3500 Hrs @ 125°C
Operating Temperature	-40°C ~ 125°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	500mA @ 120Hz
Ripple Current @ High Frequency	1A @ 100kHz
Lead Spacing	-
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	0.673" L x 0.673" W (17.10mm x 17.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
