Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCY Series Datasheet
Standard Package	100
Manufacturer	Nichicon
Series	UCY
Packaging	Bulk
Part Status	Active

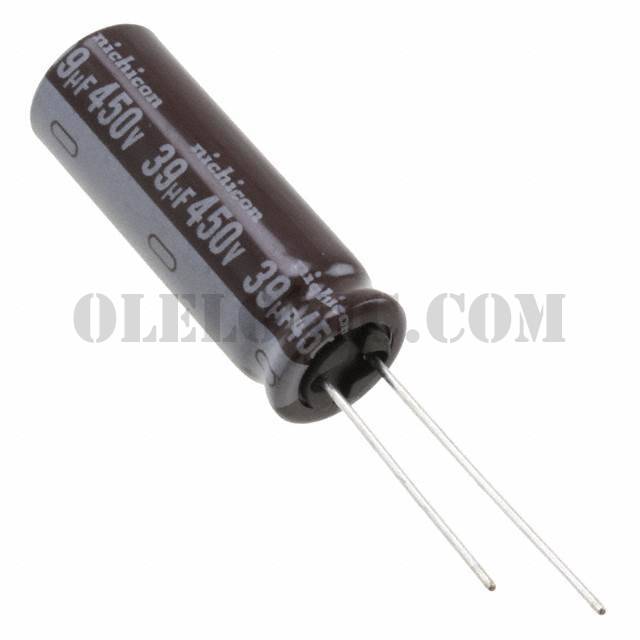

Capacitance	39µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	460mA @ 120Hz
Ripple Current @ High Frequency	920mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.476" (37.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCY2E151MHD1TN	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E101MHD1TN	Nichicon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D181MHD6TN	Nichicon, 180µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D820MHD1TO	Nichicon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C221MHD3TN	Nichicon, 220µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D331MHD	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2W390MHD3TN	Nichicon, 39µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E121MHD3	Nichicon, 120µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V390MHD1TO	Nichicon, 39µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2H680MHD	Nichicon, 68µF 500V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C390MPD1TD	Nichicon, 39µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E330MHD3TO	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View

UCY2W390MHD

Part NumberUCY2W390MHD
