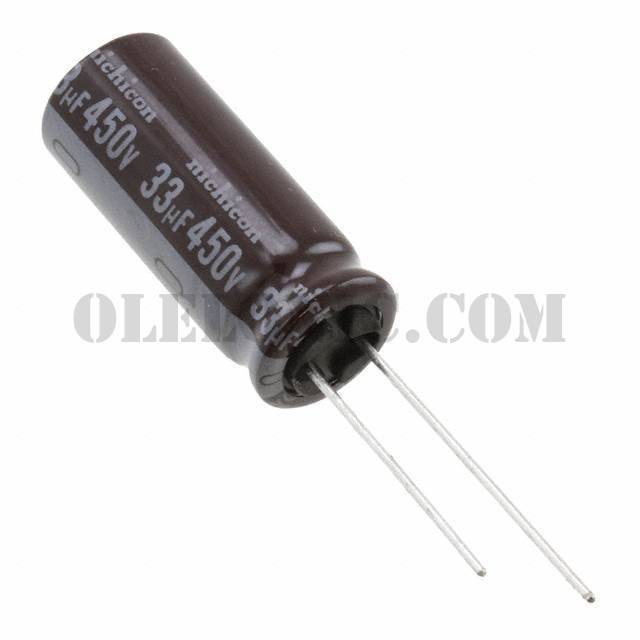

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCY Series Datasheet
Standard Package	100
Manufacturer	Nichicon
Series	UCY
Packaging	Bulk
Part Status	Active
Capacitance	33µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	400mA @ 120Hz
Ripple Current @ High Frequency	800mA @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.492" Dia (12.50mm)
Height - Seated (Max)	1.299" (33.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCY2G330MHD3TN	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E330MPD1TD	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V150MPD	Nichicon, 15µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E220MPD1TD	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E680MHD1TO	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V820MHD9TN	Nichicon, 82µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2W220MHD1TO	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCYW6101MHD6	Nichicon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E151MHD1TN	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V820MHD9	Nichicon, 82µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2G820MHD	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E560MHD1TO	Nichicon, 56µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View

UCY2W330MHD

Part NumberUCY2W330MHD
