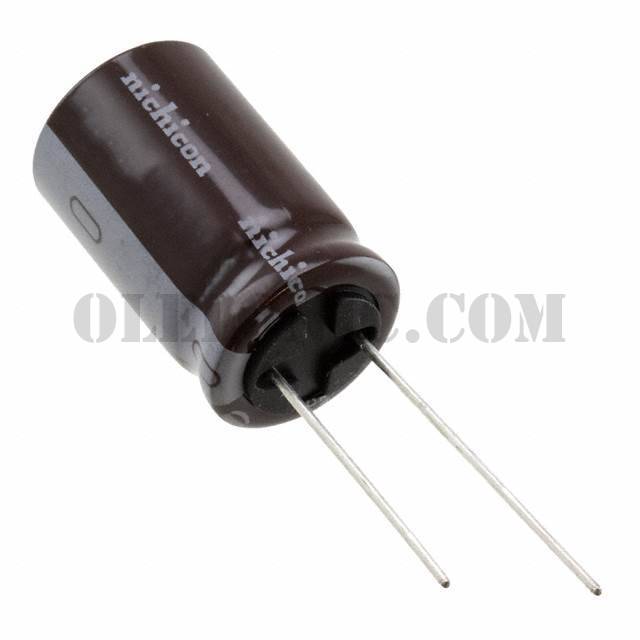

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCY Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UCY
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	12000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	280mA @ 120Hz
Ripple Current @ High Frequency	560mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCY2C680MPD1TD	Nichicon, 68µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D101MHD	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2G560MHD3	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V820MHD3TN	Nichicon, 82µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2W270MHD	Nichicon, 27µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2W330MHD3	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E330MHD3TO	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E680MHD3TN	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C391MHD9	Nichicon, 390µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V680MHD3TN	Nichicon, 68µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V680MHD3TN	Nichicon, 68µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2H220MHD6TN	Nichicon, 22µF 500V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View

UCY2H220MHD6

Part NumberUCY2H220MHD6
