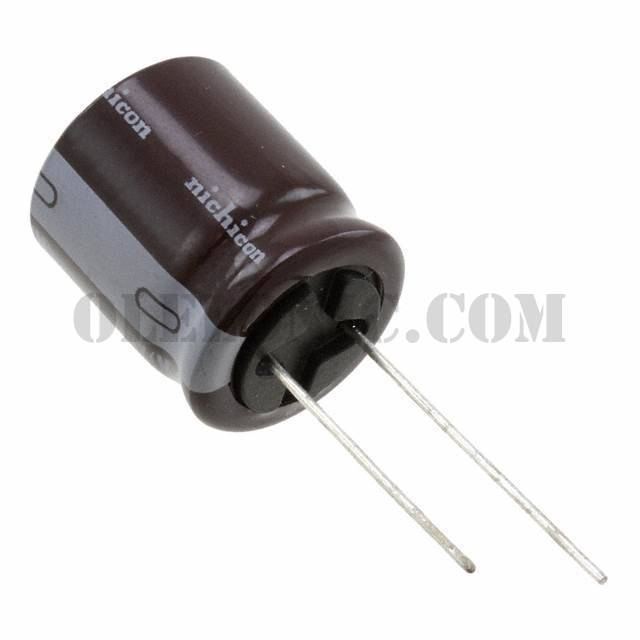

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCY Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	UCY
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	500V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	280mA @ 120Hz
Ripple Current @ High Frequency	560mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCY2V220MPD9TD	Nichicon, 22µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C331MHD6TN	Nichicon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2V820MHD9	Nichicon, 82µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2W100MPD1TD	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2G560MHD3TN	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2H220MHD3TN	Nichicon, 22µF 500V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCY	View
UCYW6101MHD	Nichicon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2C331MHD	Nichicon, 330µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2G120MPD	Nichicon, 12µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2E330MPD1TD	Nichicon, 33µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2H150MHD1TO	Nichicon, 15µF 500V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View
UCY2D331MHD	Nichicon, 330µF 200V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, UCY	View

UCY2H220MHD3TN

Part NumberUCY2H220MHD3TN
