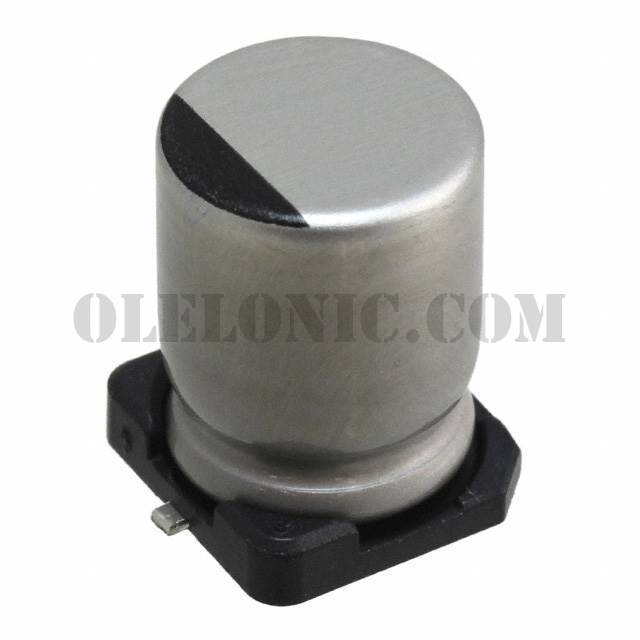

UCX1H470MCS1GS

Part NumberUCX1H470MCS1GS

To learn about the specification of UCX1H470MCS1GS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCX1H470MCS1GS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCX1H470MCS1GS.
We are offering UCX1H470MCS1GS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCX Series
Standard Package	1
Manufacturer	Nichicon
Series	UCX
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	250mOhm
Lifetime @ Temp.	2000 Hrs @ 135°C
Operating Temperature	-40°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	135mA @ 120Hz
Ripple Current @ High Frequency	270mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.413" (10.50mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
