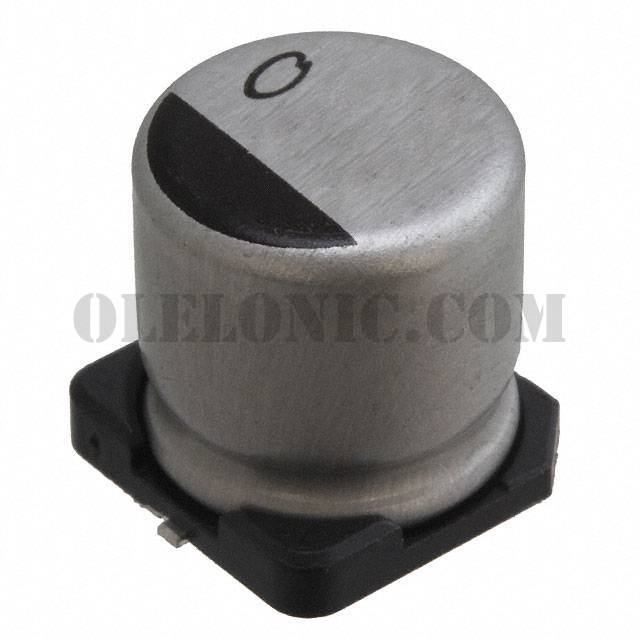

UCX1H101MCL1GS

Part NumberUCX1H101MCL1GS

To learn about the specification of UCX1H101MCL1GS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add UCX1H101MCL1GS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of UCX1H101MCL1GS.
We are offering UCX1H101MCL1GS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCX Series
Standard Package	500
Manufacturer	Nichicon
Series	UCX
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	200mOhm
Lifetime @ Temp.	2000 Hrs @ 135°C
Operating Temperature	-40°C ~ 135°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	250mA @ 120Hz
Ripple Current @ High Frequency	500mA @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.433" (11.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCX1H122MNQ1MS	Nichicon, 1200µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 40mOhm 2000 Hrs @ 135°C, UCX	View
UCX1H681MNS1MS	Nichicon, 680µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 70mOhm 2000 Hrs @ 135°C, UCX	View
UCX1V561MNS1MS	Nichicon, 560µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 70mOhm 2000 Hrs @ 135°C, UCX	View
UCX1V101MCS6GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 250mOhm 2000 Hrs @ 135°C, UCX	View
UCX1V471MNQ1MS	Nichicon, 470µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 70mOhm 2000 Hrs @ 135°C, UCX	View
UCX1H391MNS1MS	Nichicon, 390µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 90mOhm 2000 Hrs @ 135°C, UCX	View
UCX1E272MNQ1MS	Nichicon, 2700µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 40mOhm 2000 Hrs @ 135°C, UCX	View
UCX1E222MNQ1MS	Nichicon, 2200µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 50mOhm 2000 Hrs @ 135°C, UCX	View
UCX1V152MNS1MS	Nichicon, 1500µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 50mOhm 2000 Hrs @ 135°C, UCX	View
UCX1C101MCS6GS	Nichicon, 100µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 250mOhm 2000 Hrs @ 135°C, UCX	View
UCX1H122MNS1MS	Nichicon, 1200µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 40mOhm 2000 Hrs @ 135°C, UCX	View
UCX1E152MNS1MS	Nichicon, 1500µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 50mOhm 2000 Hrs @ 135°C, UCX	View
