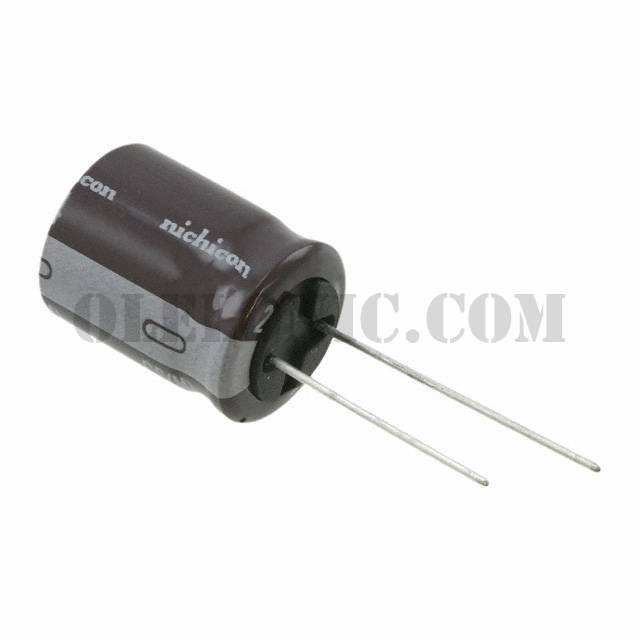

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCS Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UCS
Packaging	Bulk
Part Status	Active
Capacitance	22µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	365mA @ 120Hz
Ripple Current @ High Frequency	730mA @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCS2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2D100MPD1TD	Nichicon, 10µF 200V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2V101MHD1TN	Nichicon, 100µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G220MHD1TO	Nichicon, 22µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E220MPD1TD	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2G100MPD1TD	Nichicon, 10µF 400V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2W330MHD1TN	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2C330MPD1TD	Nichicon, 33µF 160V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2C100MPD	Nichicon, 10µF 160V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2E151MHD1TN	Nichicon, 150µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2V820MHD1TN	Nichicon, 82µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D101MND9	Nichicon, 100µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View

UCS2W220MHD

Part NumberUCS2W220MHD
