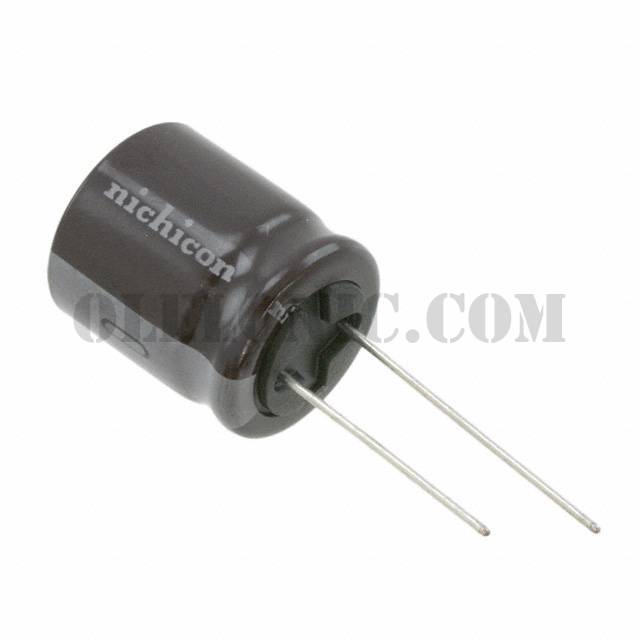

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCS Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UCS
Packaging	Bulk
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	590mA @ 120Hz
Ripple Current @ High Frequency	1.18A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.846" (21.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCS2G150MHD	Nichicon, 15µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D221MHD1TN	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G330MHD1TN	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2V680MHD6TN	Nichicon, 68µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2G6R8MPD1TD	Nichicon, 6.8µF 400V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2G680MNY9	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W150MHD1TO	Nichicon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W330MHD6TN	Nichicon, 33µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E680MHD1TN	Nichicon, 68µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E101MHD1TN	Nichicon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D271MNY9	Nichicon, 270µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D820MHD1TN	Nichicon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View

UCS2G470MHD6

Part NumberUCS2G470MHD6
