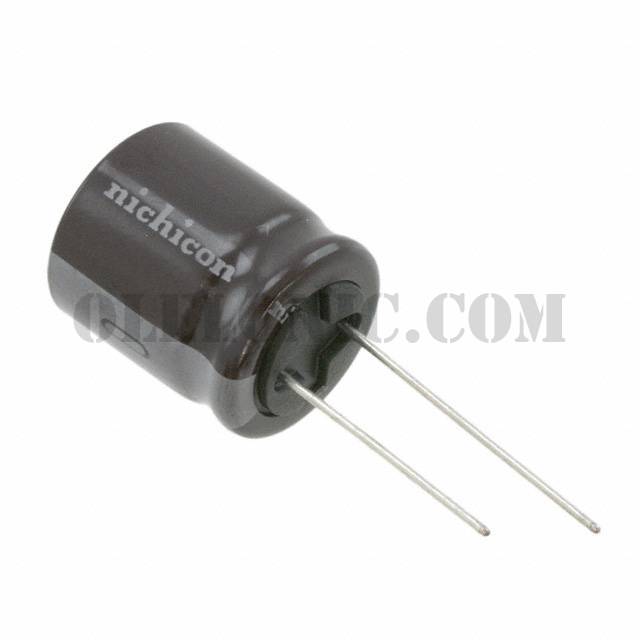

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCS Series Datasheet
Standard Package	50
Manufacturer	Nichicon
Series	UCS
Packaging	Bulk
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	250V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	765mA @ 120Hz
Ripple Current @ High Frequency	1.53A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCS2G680MHD1TN	Nichicon, 68µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W150MHD1TO	Nichicon, 15µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2V101MHD1TN	Nichicon, 100µF 350V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W100MHD1TO	Nichicon, 10µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E101MHD	Nichicon, 100µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D680MHD1TO	Nichicon, 68µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2W220MHD1TN	Nichicon, 22µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E220MPD1TD	Nichicon, 22µF 250V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C, UCS	View
UCS2D221MHD1TN	Nichicon, 220µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D820MHD	Nichicon, 82µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2D151MHD1TN	Nichicon, 150µF 200V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View
UCS2E181MNY9	Nichicon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCS	View

UCS2E101MHD

Part NumberUCS2E101MHD
