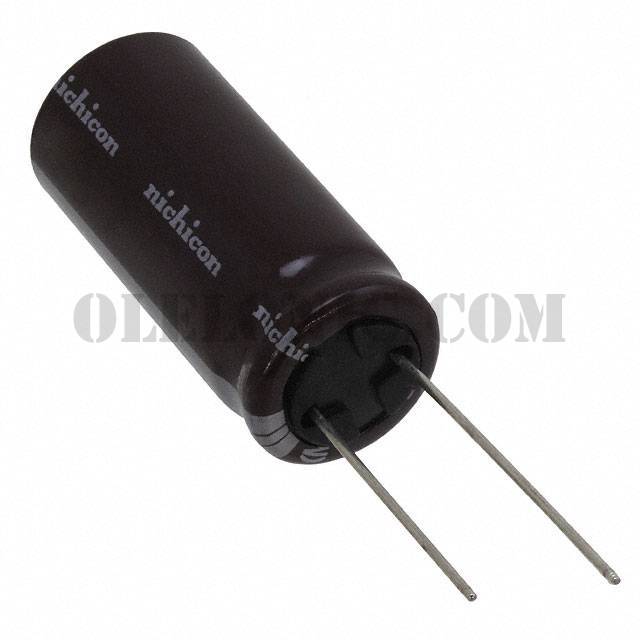

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCP Series
Standard Package	50
Manufacturer	Nichicon
Series	UCP
Packaging	Bulk
Part Status	Active
Capacitance	120µF
Tolerance	±20%
Voltage - Rated	450V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	820mA @ 120Hz
Ripple Current @ High Frequency	1.23A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCP2G330MPD	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6121MHD	Nichicon, 120µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W470MHD	Nichicon, 47µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W121MHD6	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W151MHD	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G221MHD	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W560MHD	Nichicon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W101MHD	Nichicon, 100µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G820MHD	Nichicon, 82µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6330MPD	Nichicon, 33µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6101MHD	Nichicon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G151MHD	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View

UCP2W121MHD

Part NumberUCP2W121MHD
