Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCL Series
Standard Package	1000
Manufacturer	Nichicon
Series	UCL
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	25V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	250mA @ 120Hz
Ripple Current @ High Frequency	500mA @ 100kHz
Impedance	180 mOhms
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.244" (6.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCL0J182MNL1GS	Nichicon, 1800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1A221MCL1GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1E681MNL1GS	Nichicon, 680µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J102MNL1GS	Nichicon, 1000µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J220MCL1GS	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1C220MCL6GS	Nichicon, 22µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J222MNL1GS	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1C331MNL1GS	Nichicon, 330µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1C100MCL1GS	Nichicon, 10µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1C680MCL1GS	Nichicon, 68µF 16V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1V101MCL6GS	Nichicon, 100µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J221MCL1GS	Nichicon, 220µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View

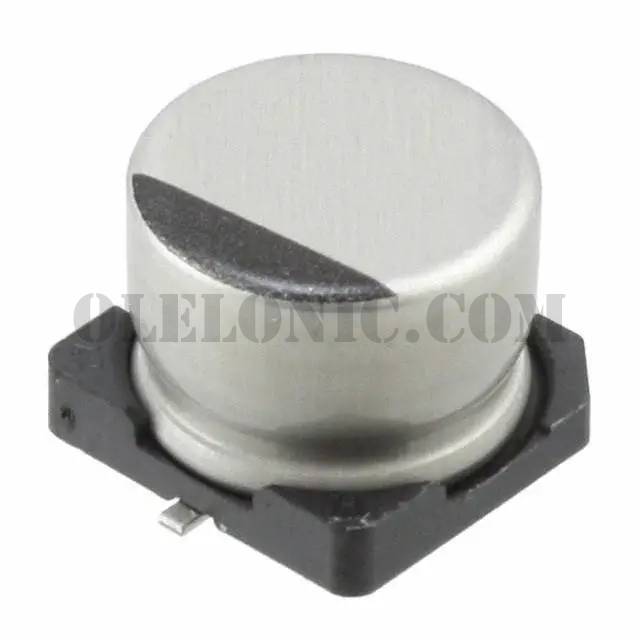

UCL1E101MCL6GS

Part NumberUCL1E101MCL6GS
