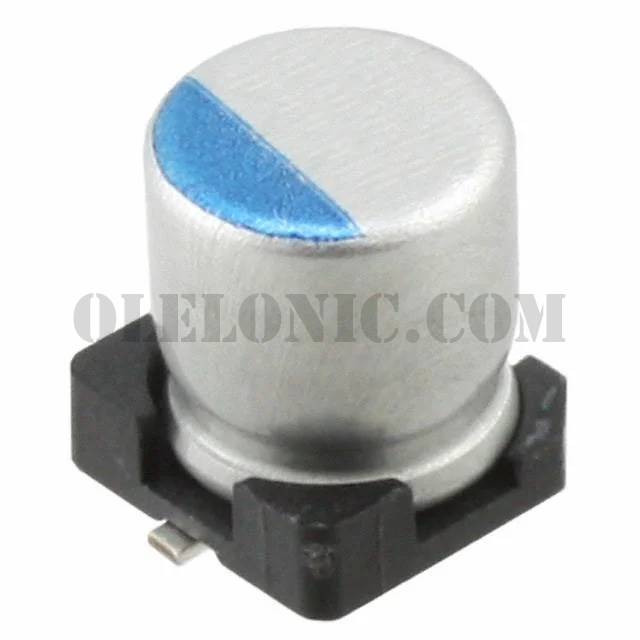

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCL Series
Standard Package	400
Manufacturer	Nichicon
Series	UCL
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	1500µF
Tolerance	±20%
Voltage - Rated	10V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	595mA @ 120Hz
Ripple Current @ High Frequency	1.19A @ 100kHz
Impedance	60 mOhms
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.532" (13.50mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
