Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCL Series
Standard Package	1000
Manufacturer	Nichicon
Series	UCL
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	47µF
Tolerance	±20%
Voltage - Rated	6.3V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	120mA @ 120Hz
Ripple Current @ High Frequency	240mA @ 100kHz
Impedance	360 mOhms
Lead Spacing	-
Size / Dimension	0.197" Dia (5.00mm)
Height - Seated (Max)	0.228" (5.80mm)
Surface Mount Land Size	0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

UCL1E680MCL1GS	Nichicon, 68µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1E151MNL1GS	Nichicon, 150µF 25V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1H221MNL1GS	Nichicon, 220µF 50V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1A681MNL1GS	Nichicon, 680µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1A470MCL1GS	Nichicon, 47µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1A221MCL6GS	Nichicon, 220µF 10V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J222MNL1GS	Nichicon, 2200µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1V470MCL1GS	Nichicon, 47µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J220MCL1GS	Nichicon, 22µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL1V391MNL1GS	Nichicon, 390µF 35V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J470MCL1GS	Nichicon, 47µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View
UCL0J182MNL1GS	Nichicon, 1800µF 6.3V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C, UCL	View

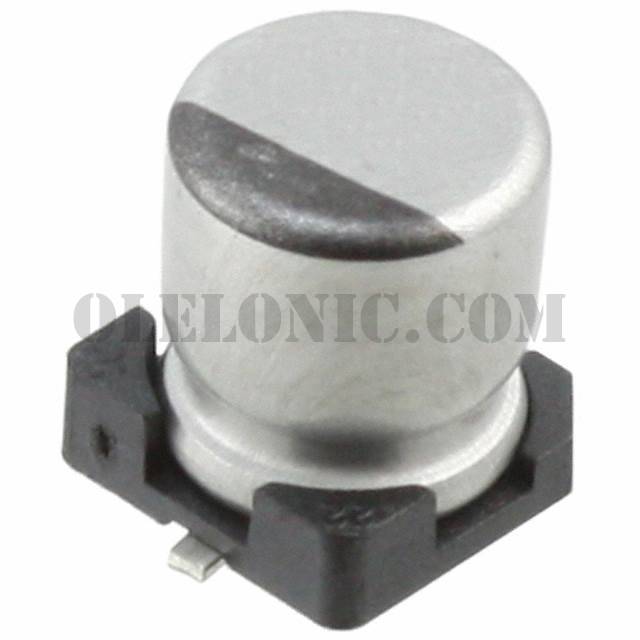

UCL0J470MCL1GS

Part NumberUCL0J470MCL1GS
