Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCD Series Datasheet
Standard Package	125

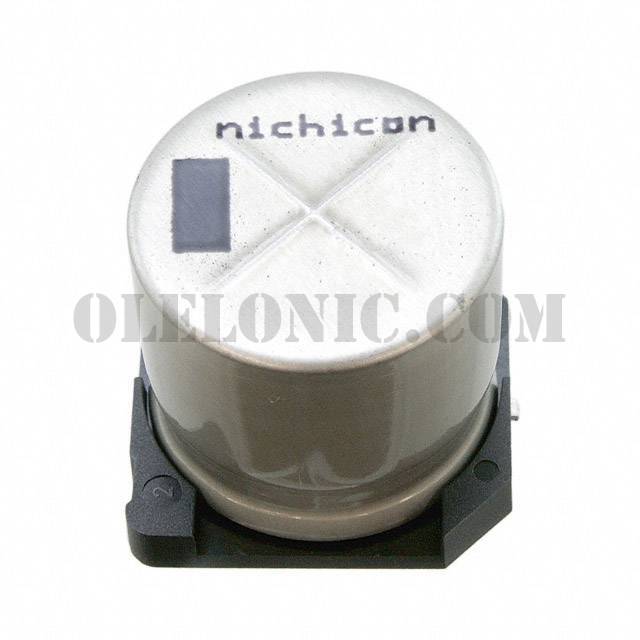

Manufacturer	Nichicon
Series	UCD
Packaging	Tape & Reel (TR)
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	100V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Polarization	Polar
Ratings	AEC-Q200
Applications	Automotive
Ripple Current @ Low Frequency	458.5mA @ 120Hz
Ripple Current @ High Frequency	917mA @ 100kHz
Impedance	150 mOhms
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.689" (17.50mm)
Surface Mount Land Size	0.752" L x 0.752" W (19.10mm x 19.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
