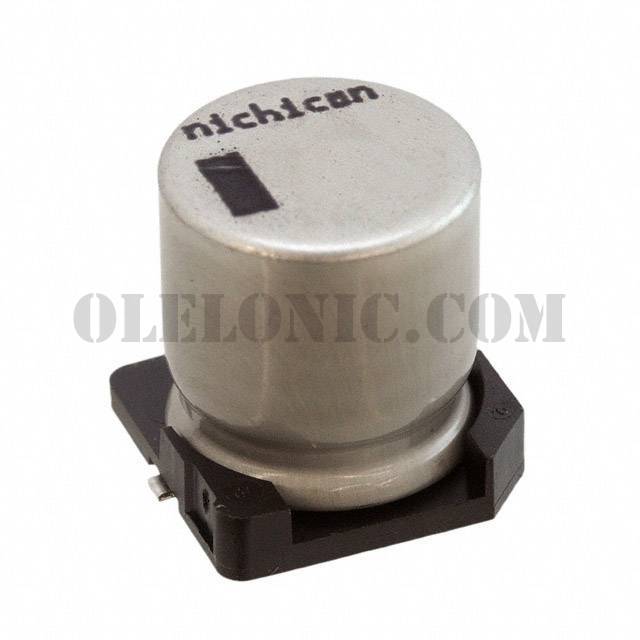

UCD1V681MNQ1MS


UCD1V681MNQ1MS

Part NumberUCD1V681MNQ1MS

Manufacturer

Description

Datasheet

Package / CaseRadial, Can - SMD

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

UCD1V681MNQ1MS - Product Attributes

Categories Capacitors / Aluminum Electrolytic Capacitors
Datasheet
Standard Package200
ManufacturerNichicon
SeriesUCD
PackagingTape & Reel (TR)
Part StatusActive
Capacitance680µF
Tolerance±20%
Voltage - Rated35V
ESR (Equivalent Series Resistance)-
Lifetime @ Temp.5000 Hrs @ 105°C
Operating Temperature-55°C ~ 105°C
PolarizationPolar
RatingsAEC-Q200
ApplicationsAutomotive
Ripple Current @ Low Frequency550mA @ 120Hz
Ripple Current @ High Frequency1.1A @ 100kHz
Impedance80 mOhms
Lead Spacing-
Size / Dimension0.492" Dia (12.50mm)
Height - Seated (Max)0.571" (14.50mm)
Surface Mount Land Size0.535" L x 0.535" W (13.60mm x 13.60mm)
Mounting TypeSurface Mount
Package / CaseRadial, Can - SMD
